Product Description

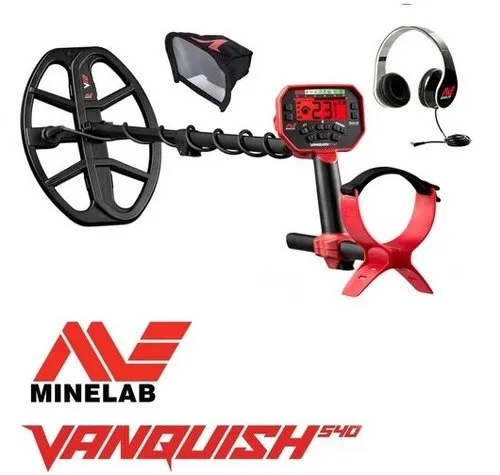

The VANQUISH 540 sits at the top of its class with Multi-IQ Simultaneous Multi-Frequency Technology.
This is serious performance for the serious detectorist. The VANQUISH 540 sits at the top of its class with Multi-IQ Simultaneous Multi-Frequency Technology, Audio Control and exclusive iron-bias control to provide even greater accuracy. In addition, a full 12” waterproof coil comes standard for greater depth detection over any terrain.
|
|
|
|
|
|---|---|---|---|
MULTI-IQ TECHNOLOGY:Minelab’s revolutionary technology combines the power of multiple detectors into one, allowing you to effectively search all metals, all soils, all the time. |
TURN ON AND GO:Engineered to let you start accurately searching right out of the box. |
ALL-TERRAIN:Outperform other detectors and dominate detection in wet sand and saltwater using one of four find modes – Coin, Relic, Jewelry, or Custom. You can even save settings for custom searches. |
Iron BiasSort treasure from trash and maximize search efficiency with adjustable bias control. |

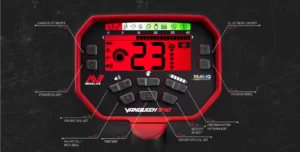

VANQUISH 540 TECH SPECS
| Search Modes | Coin, Relic, Jewellery, Custom, All Metal |
| Custom User Search Profile | Yes |
| Operating Frequencies (kHz) | Multi-IQ |
| Noise Cancel | Auto (19 Channels) |
| Bluetooth Audio | Yes |
| Iron Bias | High (default), Low |
| Sensitivity | 10 Levels |
| Volume | 10 Levels |
| Target Tones | 5 Tones |
| Discrimination Segments | 25 segments |
| Target ID’s | -9 to 40 |
| Depth Indicator | 5 levels |
| Length | Extended: 1450mm (57″) Collapsed: 760mm (30″) |
| Weight (incl. batteries) | 2.9lbs (1.3kg) |
| Standard Coil | V12 12″x9″ Double-D |
| Audio Output | In-built loudspeaker 3.5mm (1/8″) headphones Bluetooth wireless headphones |
![]() |
![]() |
![]() |
![]() |
|
|---|---|---|---|---|
| Minelab Vanquish 340 Metal Detector | Minelab Vanquish 440 Metal Detector | Minelab Vanquish 540 Metal Detector | Minelab Vanquish 540 Pro-Pack Metal Detector | |
| Simultaneous multi Frequency | Multi-IQ | Multi-IQ | Multi-IQ | Multi-IQ |
| Audio | Internal speaker, 3.5mm headphones | Internal speaker, 3.5mm headphones | Internal speaker, 3.5mm headphones, Bluetooth capability | Internal speaker, 3.5mm headphones, Bluetooth capability |
| Discrimination | 5 Segment discrimination pattern | 12 Segment discrimination pattern | 25 Segment discrimination pattern | 25 Segment discrimination pattern |
| Sensitivity levels | 4 manual levels | 10 manual levels | 10 manual levels | 10 manual levels |
| Weight | 1.2kg (including battery) | 1.2kg (including battery) | 1.3kg (Including battery) | 1.3kg (Including battery) |
| Screen | Monochrome LCD | Monochrome LCD | Monochrome LCD with red Backlight | Monochrome LCD with red Backlight |
| Water Proof | Coil only to 1m (3ft) | Coil only to 1m (3ft) | Coil only to 1m (3ft) | Coil only to 1m (3ft) |
| Battery type | 4XAA Alkaline | 4XAA Alkaline | 4XAA NiMH and USB charger | 4XAA NiMH and USB charger |
